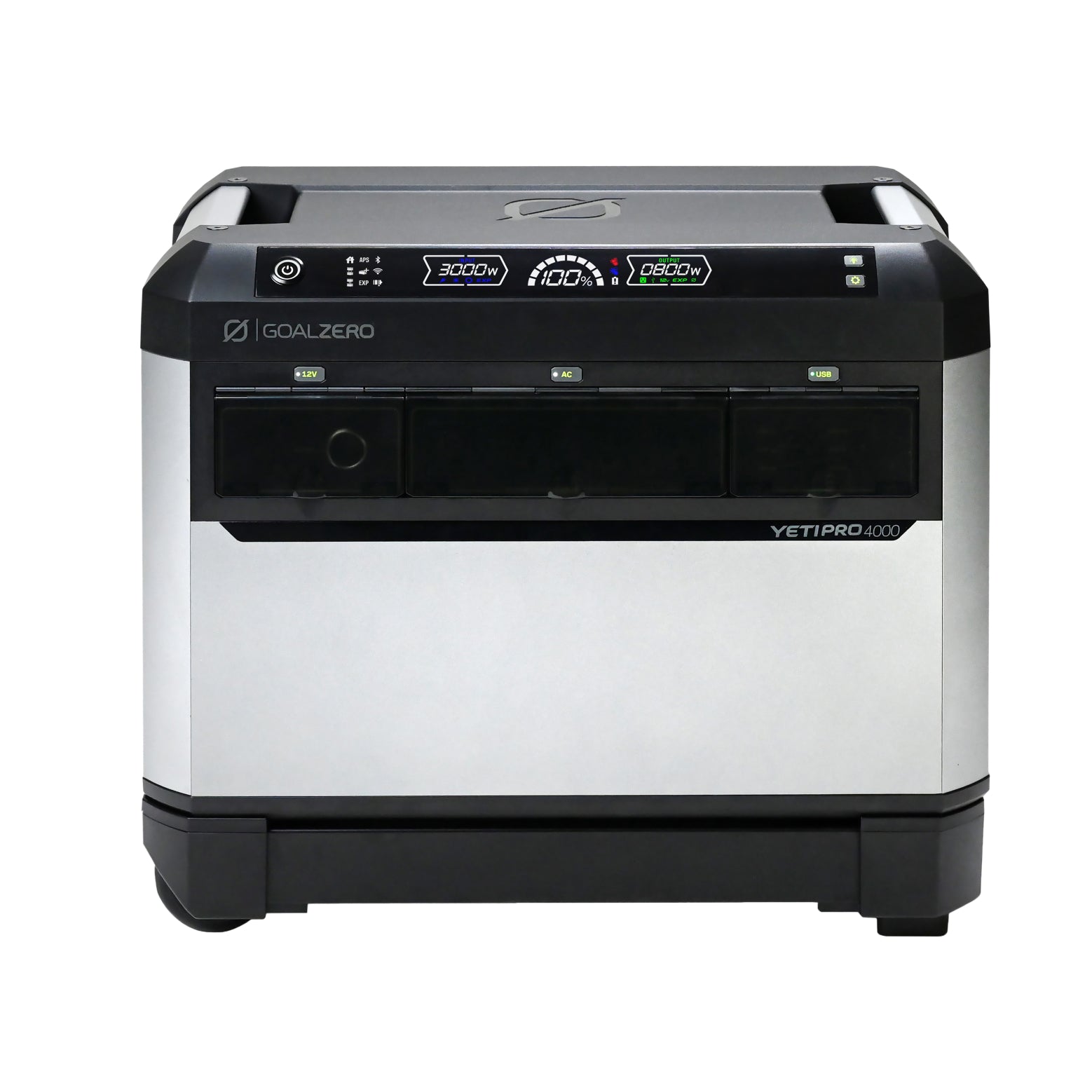

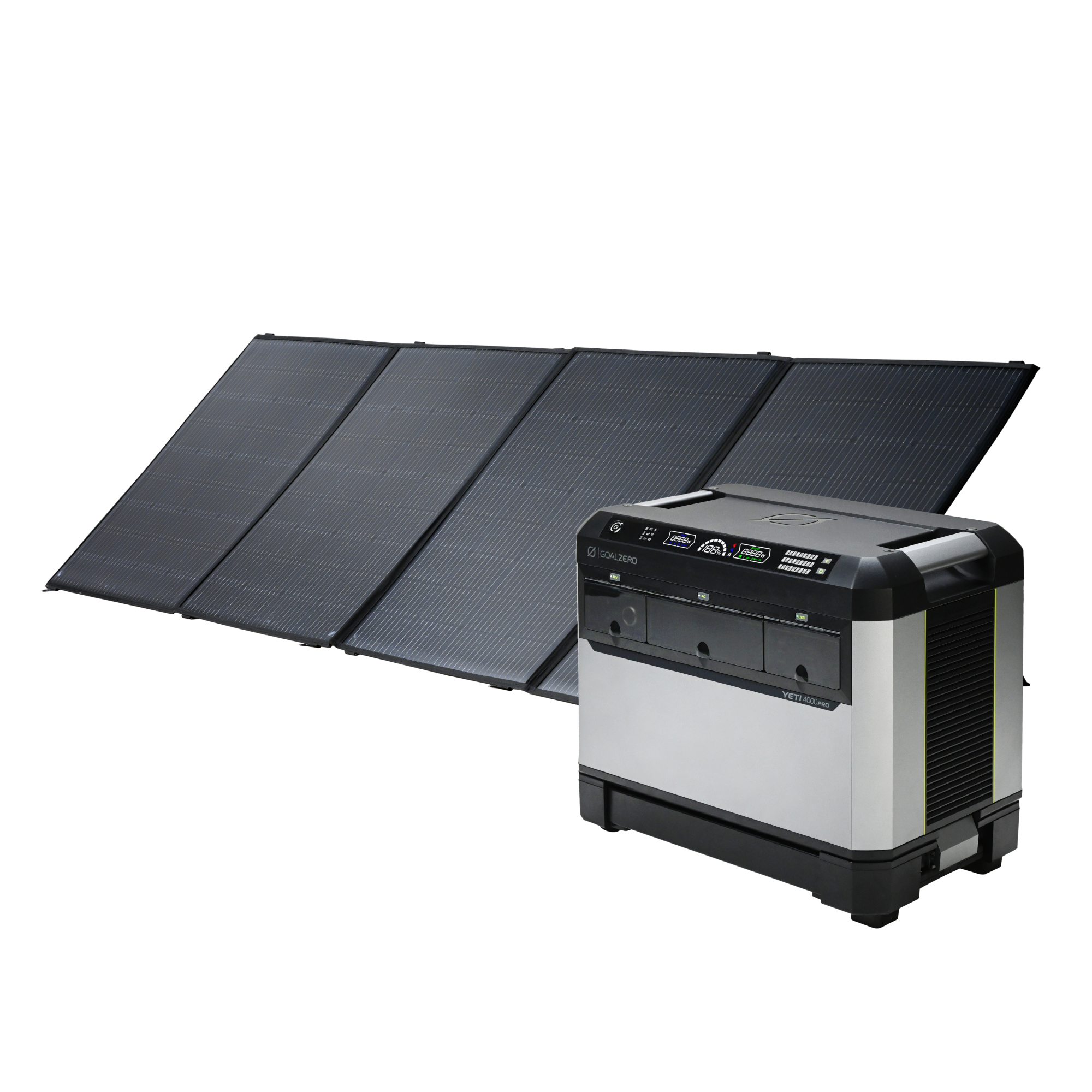

Yeti PRO 4000 + Nomad 400 Solar Generator

short

Built for resilience, the Yeti Pro 4000 + Nomad 400 Solar Generator provides 4000Wh of backup power and solar charging capability. Perfect for extended trips or emergencies, it’s power you can rely on.

specs

tech

YETI PRO 4000 INPUT

• AC Fast Charge: 1800W (90V-144V, up to 15A)
• Power+: 1800W (90-144V, 15A)
• HPP High Voltage Input: 3000W Max (13.3-150 V, up to 40A)
• 8 mm Low Voltage Input: 275W Max (12.3-28 V, up to 10A)
• Expansion Port For use with Tank Pro 4000: ( 100A, 100V Max)

YETI PRO 4000 INPUT/ OUTPUT

• Power+ (Pass-Thru): 3600 W, 90-129 V AC, 60 Hz, 30 A
• Power+ (Output): 3600 W, 120 V AC, 60 Hz, 30 A
• Accessory Port (Input and Output): 56 V DC, 100 A

YETI PRO 4000 GENERAL

• Kit SKU: 44574
• Product SKU: 37500
• Dimensions: 21.4 x 13.8 x 14.8 in. (54.3 x 35.1 x 37.7 cm)
• Dimensions (with cart): 21.4 x 13.8 x 18.1 in. (54.3 x 35.1 x 45.9 cm)
• Weight: 115.7 lbs. (52.5 kg)
• Weight (with cart): 125.7 lbs. (57.0 kg)
• Charge Temperature Range:>32 to 125.6 F (0-52C)
• Discharge Temperature Range:-4 to 140 F (-20 to 60C)
• Warranty: 5 years*
• Notable Features:

YETI PRO 4000 OUTPUT

• USB-A x 3: 18 W 5-12 V DC Up to 3 A
• Total Combined USB-A Output:54 W
• USB-C (100 W) : 100 W 5-20 V DC Up to 5 A
• USB-C( 30 W x 2): 30 W 5-20 V DC Up to 3 A
• Total Combined USB-C Output:160 W
• 12 V Auxiliary Power Port: 162 W. 13.5 V DC, 12 A Continuous, 40 A Surge (100 ms)
• 12 V High Power Port (HPP): 405 W, 13.5 V DC, 30 A Continuous, 40 A Surge (100 ms)
• 12 V 6 mm Output Port x 2:135 W, 13.5 V DC, 10 A Continuous, 40 A Surge (100 ms)
• Total Combined 12 V Output; 375 W
• AC (Inverter)(pure sine wave): 3600 W Continuous, 7200 W Surge, 120 V AC, 60 Hz, 30 A*
• AC (Single Port)(pure sine wave): 2400 W, 120 V AC, 60 Hz, 20 A*
• AC (TT-30R)(60 Hz - pure sine wave): 3,600 W, 120 V AC, 60 Hz, 30 A
• Total Combined Output: 4189 W

YETI PRO 4000 BATTERY

• Cell Chemistry: LiFePO₄
• Battery Pack Capacity: 3993.6 Wh (51.2 V, 78 Ah)
• Single Cell Equivalent Capacity: 1,248 Ah @ 2.2 V
• Lifecycles*: 4000
• Shelf Life: 12-18 months

YETI PRO 4000 CHARGING SPEED

• Solar (3000 W Max): 2 hrs.
• 400W (Boulder 200 X 2): 12 hrs.
• 600W (Boulder 200 X 4): 6 hrs.
• 1200W (Ranger 300 X 4): 4 hrs.
• Car Charger (10A): 37
• Vehicle (Alternator @ 400 W): 11 hrs.

YETI PRO 4000 COMMUNICATION

• Bluetooth 4.1
• Wi-Fi a/g/n
• Goal Zero companion app required.

tech2

NOMAD 400 CHARGE TIMES

• Yeti PRO 4000: 12 - 24 Hours

• Yeti PRO 8000: 24 - 48 Hours
• Yeti 1500X: 4 - 8 Hours
• Yeti 3000X: 9 - 18 Hours
• Yeti 6000X: 18 - 36 Hours

GENERAL

• Product SKU: 11950
• Weight:36.60 lbs. (16.6 kg)
• Dimensions (Folded):28.54 x 31.69 x 1.18 in. (72.5 x 80.5 x 3 cm)
• Dimensions (Unfolded): 113.98 x 31.69 x 0.2 in. (289.5 x 80.5 x 0.5 cm)
• Panel Construction: Lamination
• Ingress Protection: IP65
• Warranty: 2 Year
• Operating Temperature Range: -40-185 °F (-40-85 °C)
• Maximum System Voltage: 1000 V

PORTS

• High Power Port: 14-22V, up to 14A (200W max)
• Output Port (HPP):  14-150V, 40 A, 400W
• Cable Length: 35.43 in (0.9 m)
• Guage: 12 AWG
• 15 ft HPP Extention (Included): 15 ft, 12 AWG
• Output Port (USB-A): 5 V, 2.4 A, 12 W, 7.87 in (0.2 m) 12 AWG

box1

Yeti PRO 4000 + Nomad 400 Solar Generator HIGHLIGHTS

• BACK UP YOUR BACKUP
  The Yeti PRO 4000 is a powerful source of home backup power. Get even more power out of it by choosing this solar generator option. By connecting your power station to solar, you get an indefinite source of power that will last you through longer power outages and help you enjoy life off-grid.
• LONG LASTING POWER
  Upgraded LiFePO4 battery technology gives this power station an incredible 4000+ cycle lifespan with over 10 years of daily use. It comes with 3,600 watt power out and 7,200 watt surge, and has 80% more power than our previous generation products. Run almost any home appliance, aside from air conditioning.
• POWERFUL SOLAR INPUT
  Charge your Yeti PRO quickly with the new Nomad 400 solar panel for a 12-14 Hour recharge.


box2

NOMAD 400 HIGHLIGHTS

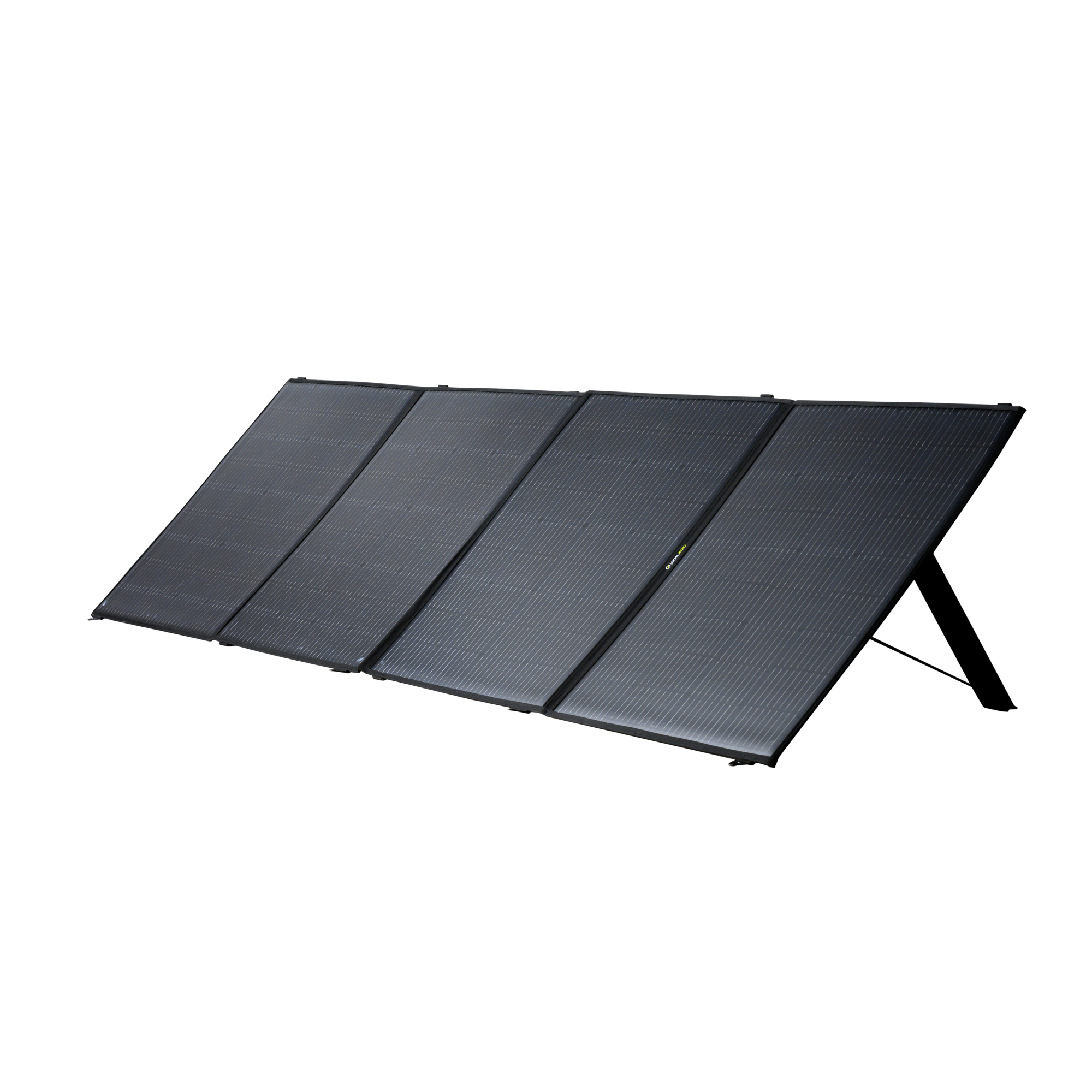

400 Watts of foldable solar.

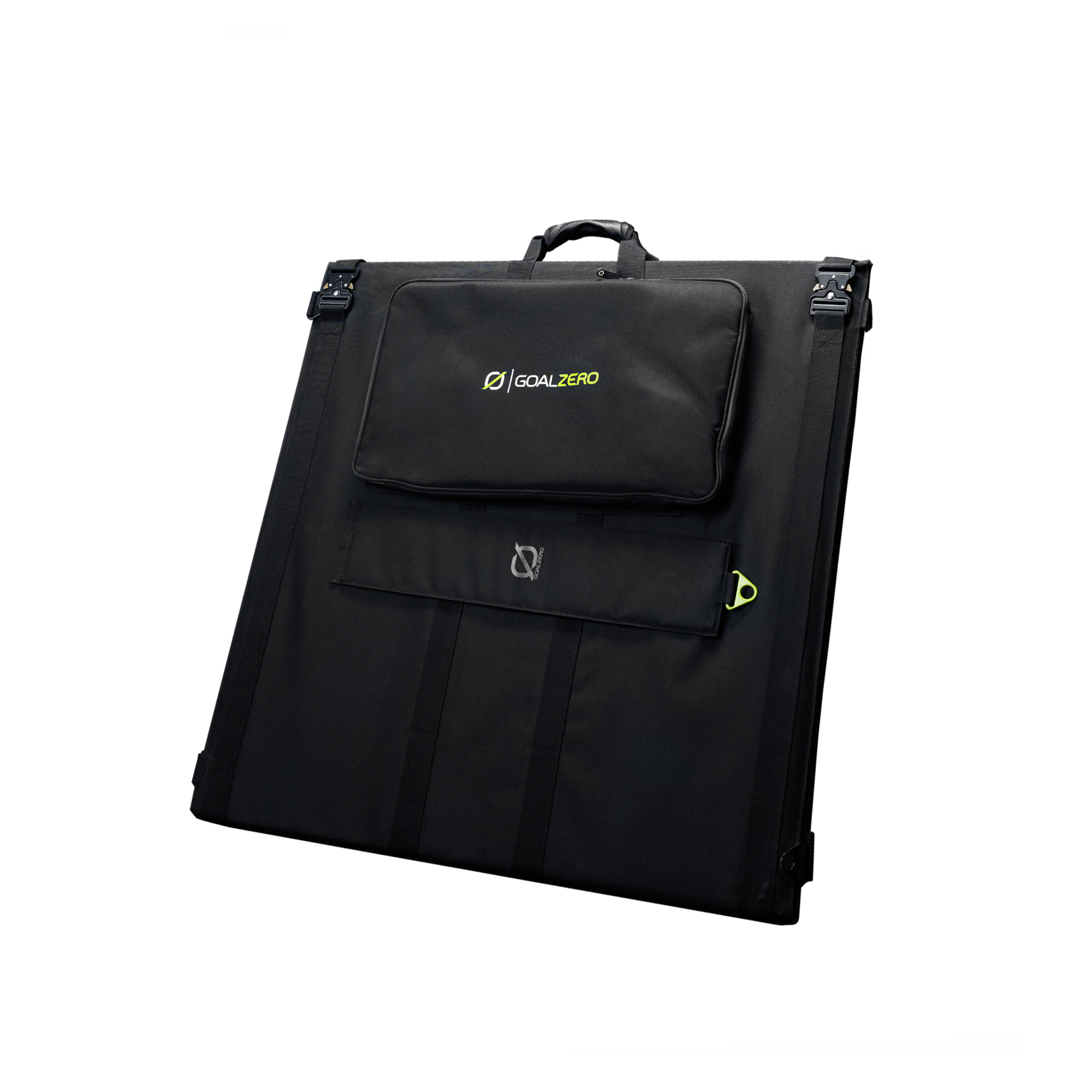

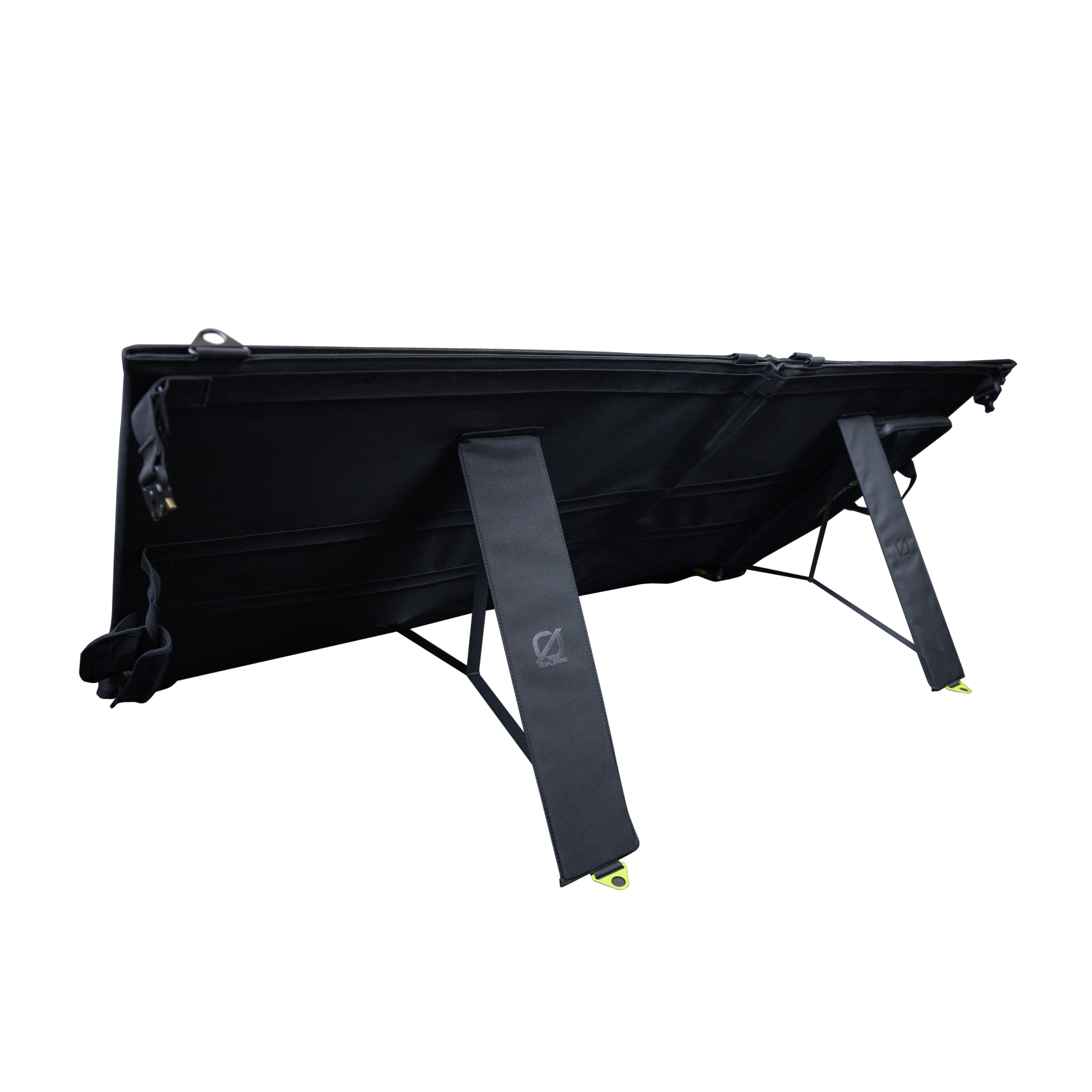

The Nomad 400 is designed to be easy to take with you, whether you’re overlanding, camping, or setting up in the backyard during a power outage. It’s lightweight and folds down to be more compact—plus it includes a shoulder strap and carrying handles.

TIPS & TRICKS FOR SOLAR PANELS

• Your solar panel collects energy, but does not store it. In order to use it, connect it to a power station, or charge your devices directly with the cables attached to the panel.

• Adjust your solar panel throughout the day for optimal sun exposure.

• Don't forget that you can still use your panel on a cloudy day, it will just be less efficient.

HOME BACKUP POWER

Our customizable backup power solutions can cover up to 10 essential circuits when you connect your power station to the Haven 10 Manual Transfer Switch. Get reliable power during outages and emergencies. Power lights, fridges, medical devices, Wi-Fi routers, and more!

box3

THREE WAYS TO CHARGE

• FROM THE SUN
  Recharge from the sun by connecting a compatible solar panel. Charge time depend on the size of your solar panel.
• FROM THE WALL
  Your Yeti PRO 4000 can charge 0-100% in under 3 hours when plugged into the wall with the included power cable.
• FROM THE CAR
  You can charge your Yeti PRO 4000 from your car by plugging it into your 12 V adapter using the 12 V Aux to 8 mm Car Charging Cable. This will recharge your Yeti PRO from 0-100% in about 37 hours.
