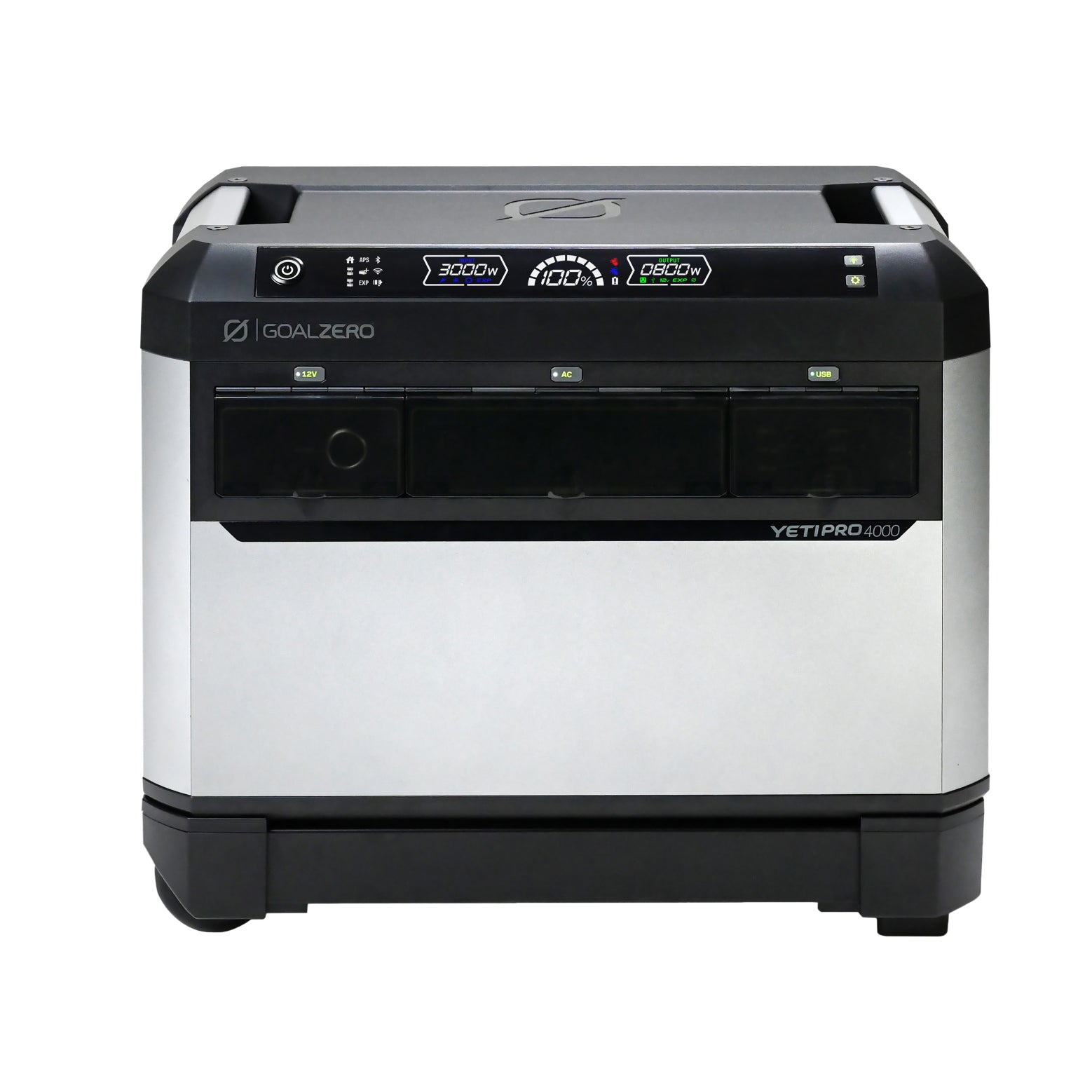

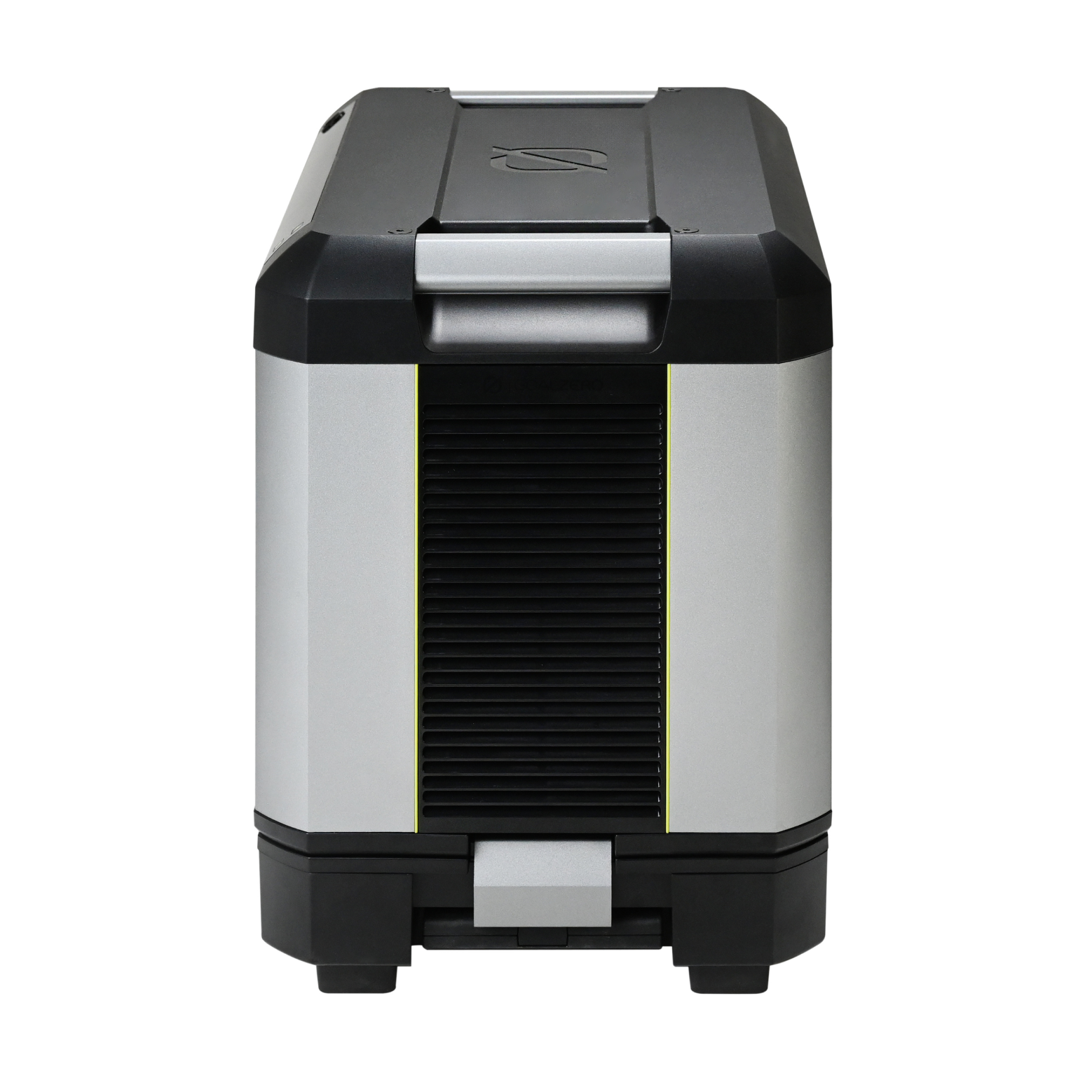

Yeti PRO 4000 Escape Towable Kit

short

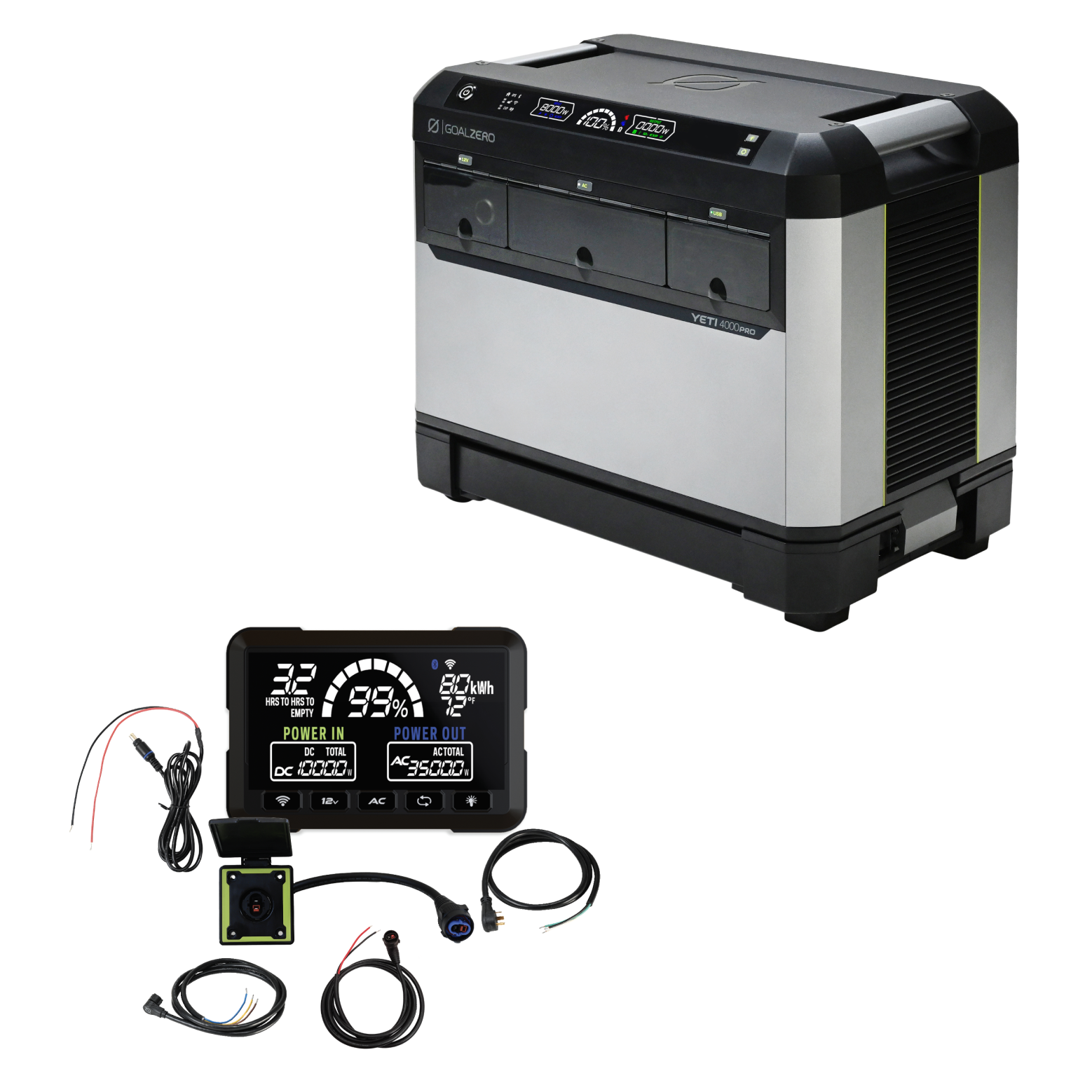

Go further off grid with the Escape Ecosystem. This kit includes the Yeti PRO 4000 and the supplies you need to install in a camper, trailer, or RV for convenient power on the road.
Note: Requires Professional Installation.

features

YETI PRO 4000 HIGHLIGHTS

• BEST IN CLASS POWER OUTPUT
  The Yeti PRO 4000 handles heavy-duty appliances with ease and powers more for longer thanks to its next-generation efficient inverter technology. It comes with 3,600 watt power out and 7,200 watt surge, and has 80% more power than our previous generation products. Run almost any home appliance, aside from air conditioning.
• CLASS-LEADING LIFESPAN
  Upgraded LiFePO4 battery technology gives this power station an incredible 4000+ cycle lifespan with over 10 years of daily use. This reliable power station is guaranteed with a 5 year warranty so you can count on it when you need it most.
• SUPERIOR FAST CHARGING
  The Yeti PRO 4000 offers over 3 times the charging speed of previous generation products. It has 1800 W AC power in to charge from 0% to 80% in 2 hours and 3,000 W solar input to charge from 0% to 100% in under 2 hours while you're off grid.

specs

tech

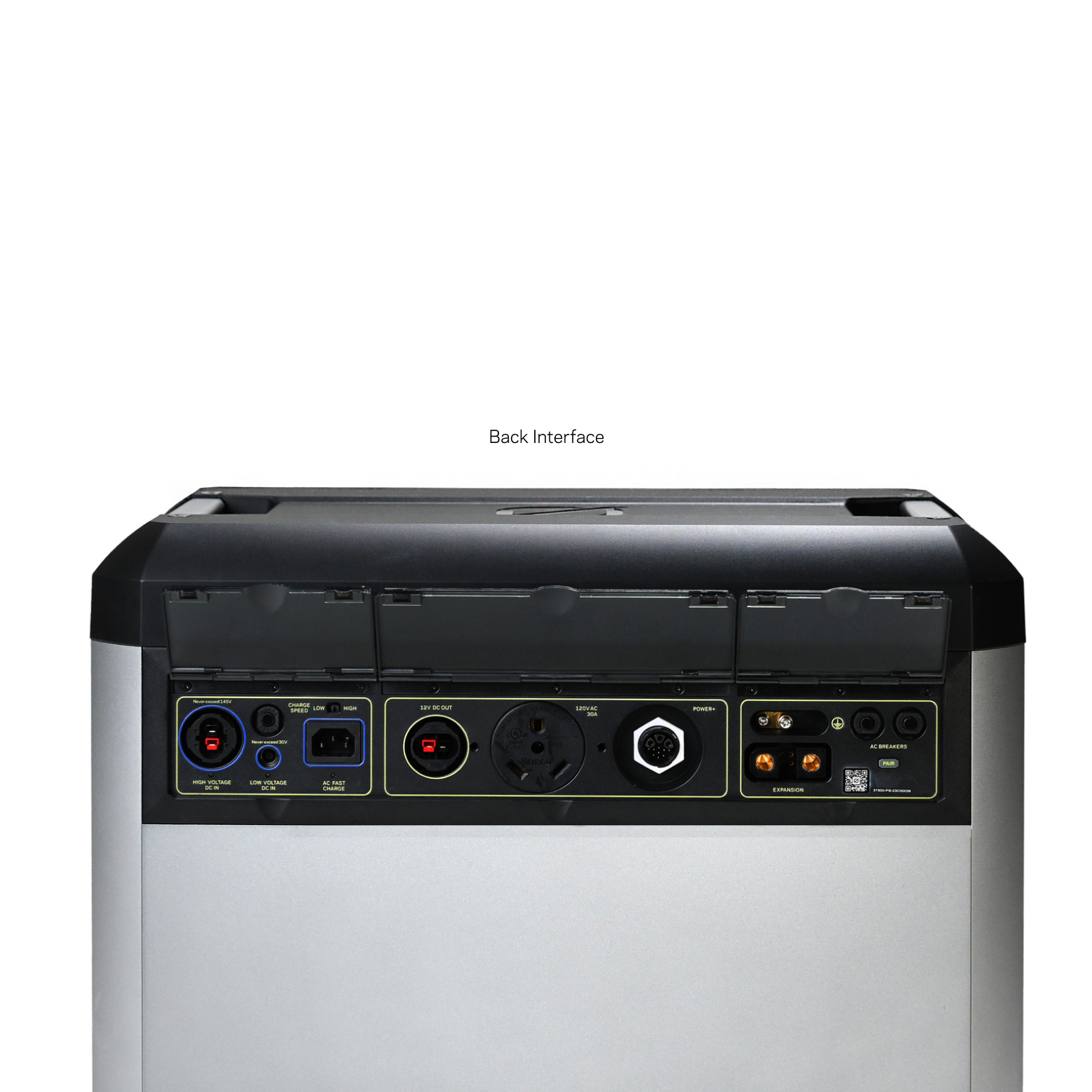

YETI PRO 4000 INPUT

• AC Fast Charge: 1800W (90V-144V, up to 15A)
• Power+: 1800W (90-144V, 15A)
• HPP High Voltage Input: 3000W Max (13.3-150 V, up to 40A)
• 8 mm Low Voltage Input: 275W Max (12.3-28 V, up to 10A)
• Expansion Port For use with Tank Pro 4000: ( 100A, 100V Max)
• Reunion Auto-Lock (Input): 3000W (90-254 V, 30 A),

YETI PRO 4000 INPUT/ OUTPUT

• Reunion Auto-Lock (Pass-Thru): 3600 W, 90-129 V AC, 60 Hz, 30 A
• Reunion Auto-Lock (Output): 3600 W, 120 V AC, 60 Hz, 30 A
• Accessory Port (Input and Output): 56 V DC, 100 A

YETI PRO 4000 GENERAL

• Kit SKU: 44581
• Product SKU: 37500
• Dimensions: 21.4 x 13.8 x 14.8 in. (54.3 x 35.1 x 37.7 cm)
• Dimensions (with cart): 21.4 x 13.8 x 18.1 in. (54.3 x 35.1 x 45.9 cm)
• Weight: 115.7 lbs. (52.5 kg)
• Weight (with cart): 125.7 lbs. (57.0 kg)
• Charge Temperature Range:  32 to 125.6 F (0-52C)

• Discharge Temperature Range:-4 to 140 F (-20 to 60C)

• Warranty: 5 years*
• Notable Features:

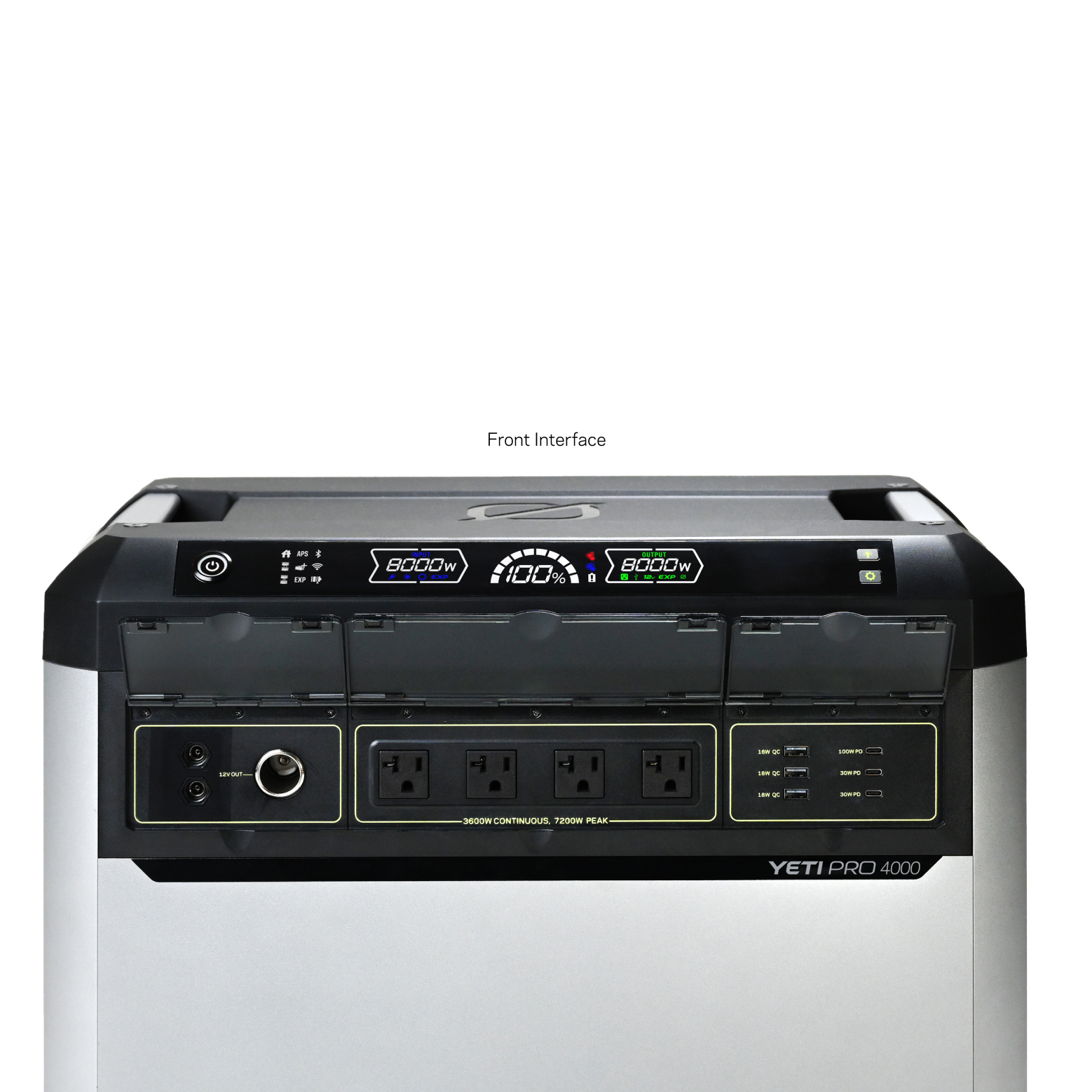

YETI PRO 4000 OUTPUT

• USB-A x 3: 18 W 5-12 V DC Up to 3 A
• Total Combined USB-A Output:54 W
• USB-C (100 W) : 100 W 5-20 V DC Up to 5 A
• USB-C( 30 W x 2): 30 W 5-20 V DC Up to 3 A
• Total Combined USB-C Output:160 W
• 12 V Auxiliary Power Port: 162 W. 13.5 V DC, 12 A Continuous, 40 A Surge (100 ms)
• 12 V High Power Port (HPP): 405 W, 13.5 V DC, 30 A Continuous, 40 A Surge (100 ms)
• 12 V 6 mm Output Port x 2:135 W, 13.5 V DC, 10 A Continuous, 40 A Surge (100 ms)
• Total Combined 12 V Output; 375 W
• AC (Inverter)(pure sine wave): 3600 W Continuous, 7200 W Surge, 120 V AC, 60 Hz, 30 A*
• AC (Single Port)(pure sine wave): 2400 W, 120 V AC, 60 Hz, 20 A*
• AC (TT-30R)(60 Hz - pure sine wave): 3,600 W, 120 V AC, 60 Hz, 30 A
• Total Combined Output: 4189 W

YETI PRO 4000 BATTERY

• Cell Chemistry: LiFePO₄
• Battery Pack Capacity: 3993.6 Wh (51.2 V, 78 Ah)
• Single Cell Equivalent Capacity: 1,248 Ah @ 2.2 V
• Lifecycles*: 4000
• Shelf Life: 12-18 months

YETI PRO 4000 CHARGING SPEED

• Solar (3000 W Max): 2 hrs.
• 400W (Boulder 200 X 2): 12 hrs.
• 600W (Boulder 200 X 4): 6 hrs.
• 1200W (Ranger 300 X 4): 4 hrs.
• Car Charger (10A): 37
• Vehicle (Alternator @ 400 W): 11 hrs.

YETI PRO 4000 COMMUNICATION

• Bluetooth 4.1
• Wi-Fi a/g/n
• Goal Zero companion app required.

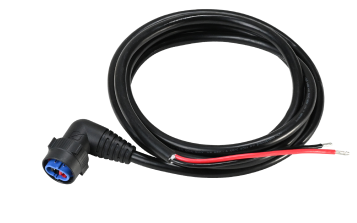

12V Locking HPP to Flying Leads Output Cable

Specs

• Length: 8'
• Wire Gauge: 10AWG
• Current Rating: 30A

Flying Leads to Solar HPP+ Input Cable

Specs

• Length: 8'
• Wire Gauge: 10AWG
• Current Rating: 40A

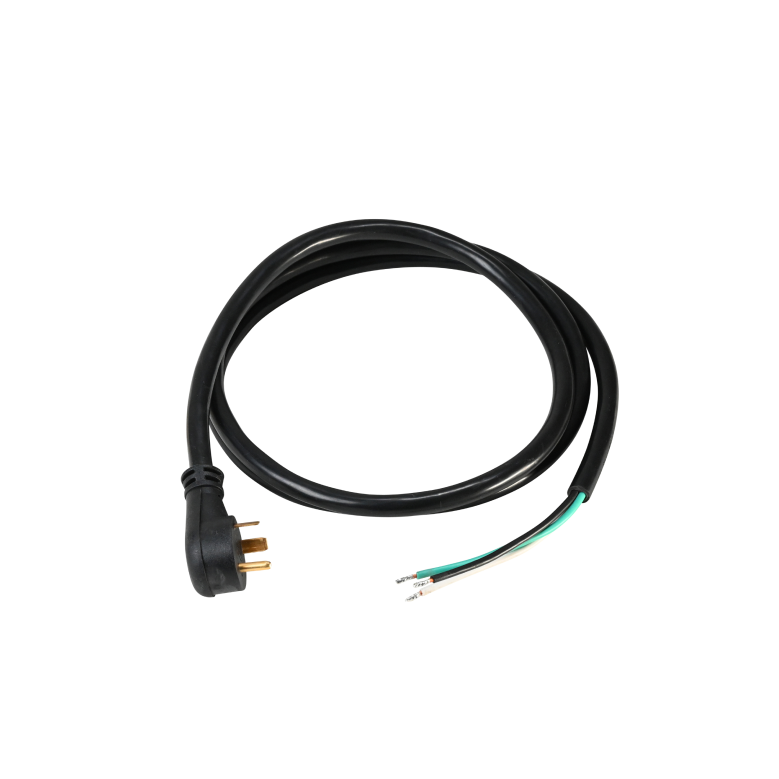

TT-30P to Flying Leads Output Cable

Specs

• Length: 8'
• Wire Gauge: 10AWG
• Current Rating: 30A (120V)

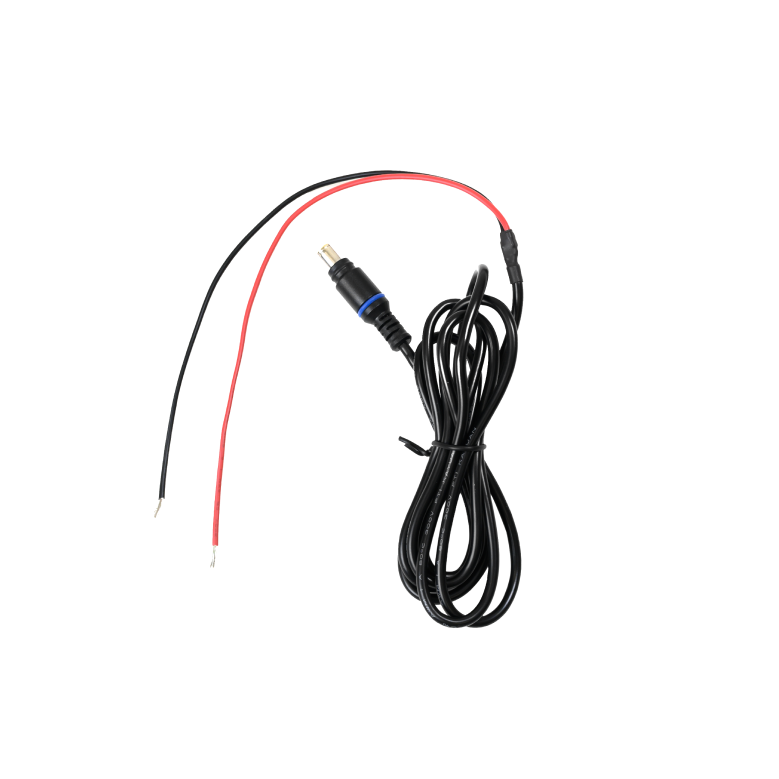

Flying Leads to 8mm DC Input Cable

Specs

• Length: 8'
• Wire Gauge: 16AWG
• Current Rating: 10A

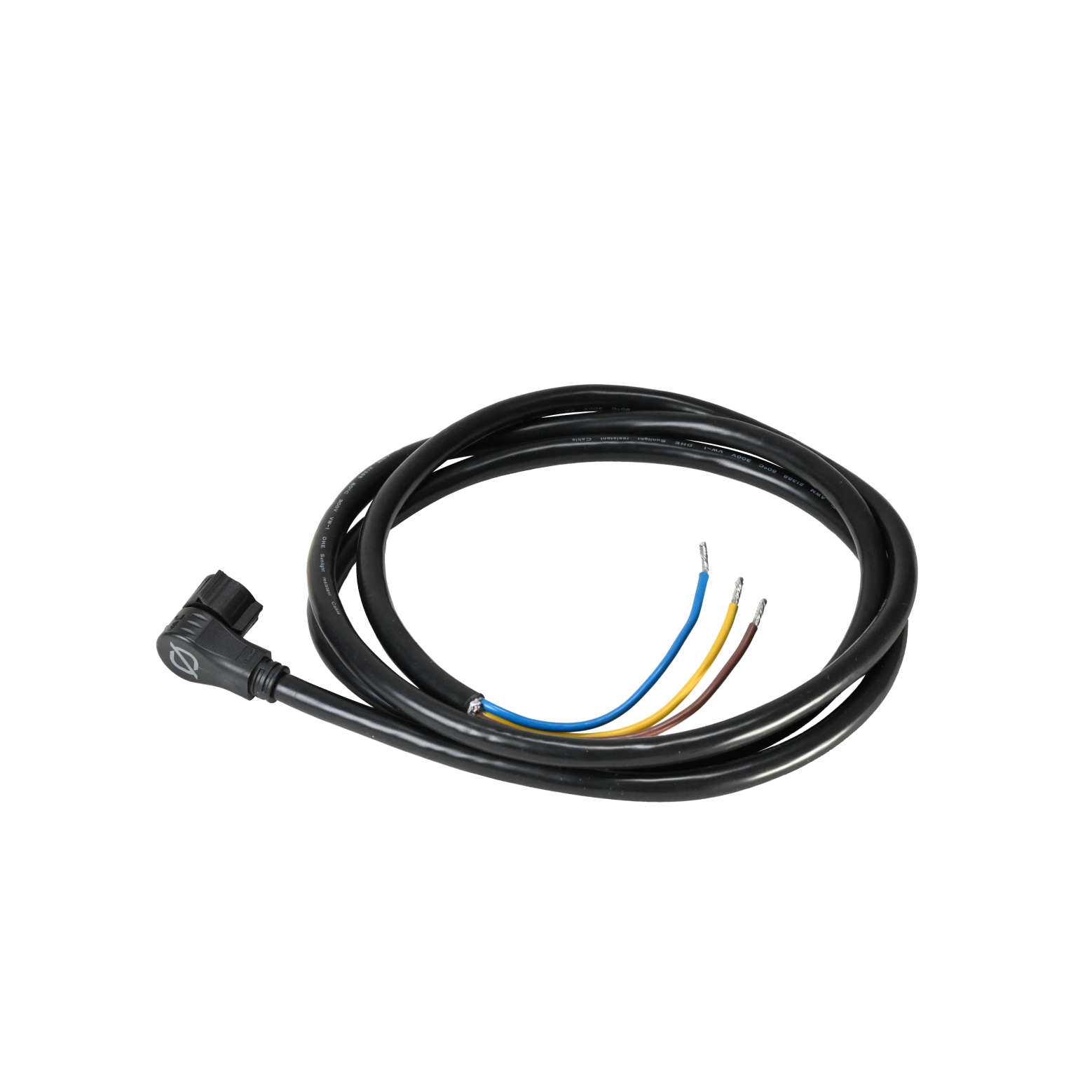

Flying Leads to Power+ Cable

Specs

• Length: 8'
• Wire Gauge: 10AWG
• Current Rating: 40A

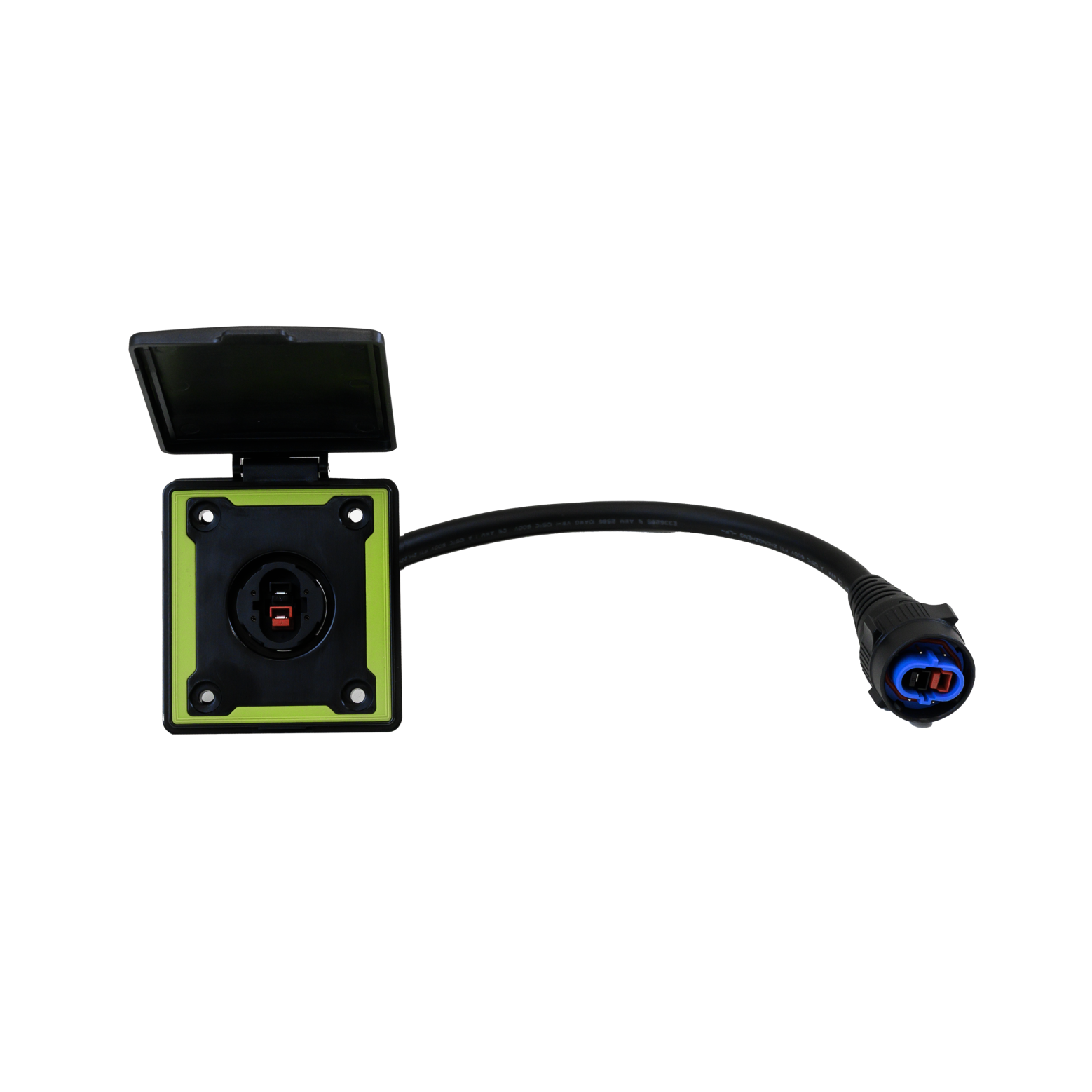

HPP+ Solar Bulkhead Inlet

Specs

• Length: 16"
• Wire Gauge: 10AWG
• Current Rating: 40A

box1

YETI PRO 4000 HIGHLIGHTS

• UNRIVALED BUILD QUALITY
  The Yeti PRO 4000 is the largest power station rated for portable outdoor use and was designed with safety and durability in mind. It meets the standards for UL2743 certifications and has an FCC Class B safety certification. It also has a battery management system with over 100 safety checkpoints per second.
• EASY EXPANSION AND INTEGRATION
  The Yeti PRO 4000 is designed for simple vehicle integration and home circuit integration so you can take it on the road in your RV or van, or backup as many as 10 circuits in your home. Get even more power by adding up to 4 Tank PRO 4000 expansion batteries for up to 20 kWh of power. You can also get indefinite renewable energy by pairing solar panels with your power station to create a solar generator.

box2

THREE WAYS TO RECHARGE

• FROM THE SUN
  Recharge from the sun by connecting a compatible solar panel. Charge time depend on the size of your solar panel.
• FROM SHORE POWER
  Once the Escape system is installed you can easily charge your Yeti PRO 4000 at RV parks and campsites using shore power.
• FROM THE CAR
  You can charge your Yeti PRO 4000 from your car by plugging it into your 12 V adapter using the 12 V Aux to 8 mm Car Charging Cable. This will recharge your Yeti PRO from 0-100% in about 37 hours.

On The Road

The Power You Need
The Yeti PRO 4000 is the heart of your system and gives you long lasting power that can run almost any appliance. This means you can explore further without worrying about access to shore power.

Convenient Control

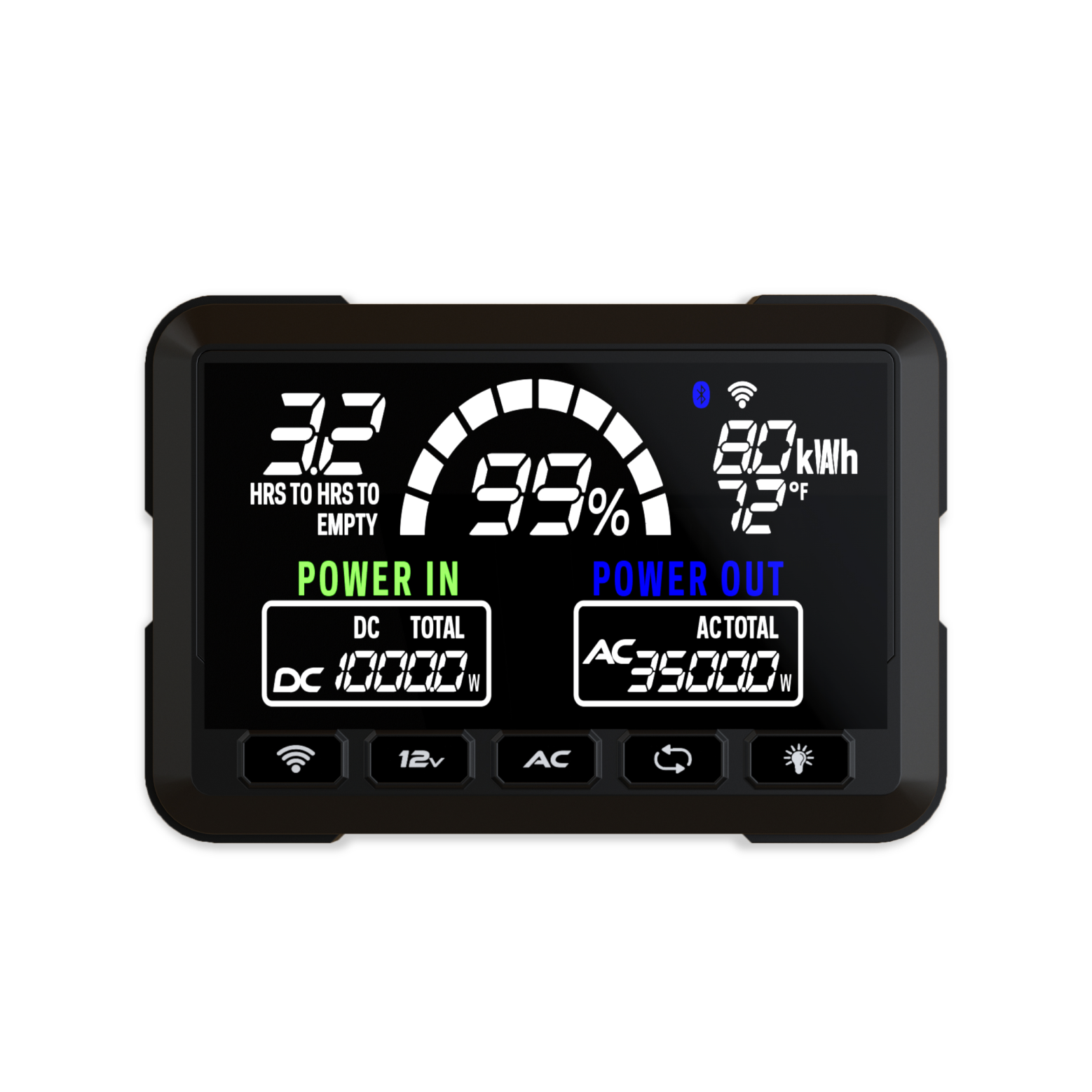

Your Escape ecosystem is app enabled for easy control of your devices while you’re on the road. You can also install the Smart Control Display that lets you power the system on and off and gives you extra information about your Yeti PRO.

Versatile Power Options
This kit gives you the wiring you need to recharge the Yeti PRO using shore power or solar power. Once the kit is installed in your vehicle, it replaces the OEM power system.

Home Backup Power

Our customizable backup power solutions can cover up to 10 essential circuits when you connect your power station to the Haven 10 Manual Transfer Switch. Get reliable power during outages and emergencies. Power lights, fridges, medical devices, Wi-Fi routers, and more!

box3

GOAL ZERO ECOSYSTEM

The Goal Zero ecosystem is designed to give you control over your own power solutions, whether you're looking for home backup, work site power, off-grid power, ways to upgrade your camping trips, or power on the road. We offer portable power stations, expansion batteries, solar panels, lights, and more.

GOAL ZERO POWER APP

Our app has been reimagined and redesigned to work seamlessly with our new Yeti PRO 4000 devices. Monitor, control, and track your power usage from virtually anywhere. Check battery level, power flow in and out, and turn ports on or off. Compare energy use to historical data. Choose from different charge profiles to prioritize Performance, Battery Saver, or Balance modes.
